Standard manufacturing form

1. Structure: The shell is equipped with feed pipe, washing pipe, observation mirror, exhaust port, inspection hole, lighting hole; closed structure, drum, shell, flip cover and other parts are made of stainless steel (SUS304). The machine base is cast, and the surface is lined with stainless steel. The drum, the inner and outer surfaces of the shell, and the surface of the exposed parts of the machine are all polished.
2. All solid parts are stainless steel parts.
3. Using PLC control.
4. Electromechanical material process control.
5. Transmission and braking: ordinary motor (or explosion-proof motor) + frequency converter + energy consumption braking.
6. Pneumatic moving parts system.

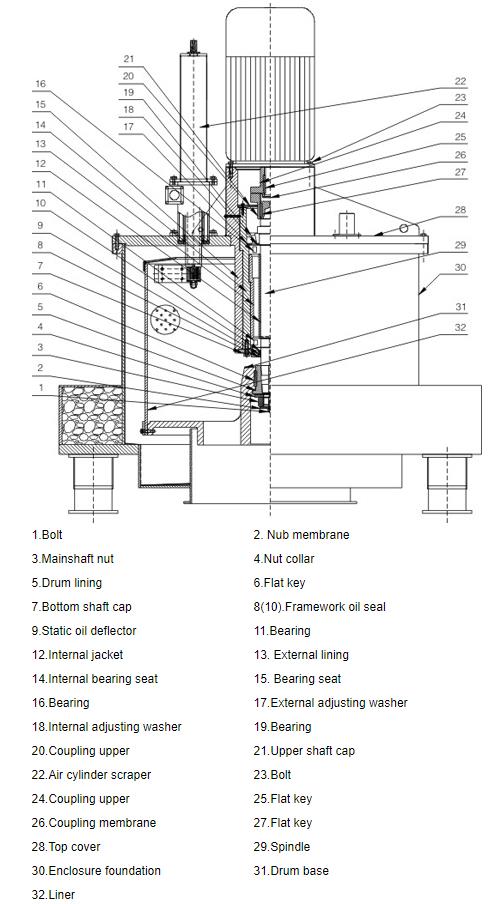

PAUT structure diagram

The main technical parameters
